Axial Fan
Our custom-made axial fans are generally used for relatively high flow rate and low-pressure working conditions. All axial fans are designed to meet our customers’ need, as well as special requirements such as for use in explosion proof environment.
Specifications
| Size diameter | 40 up to 1250mm |
| Impeller types | High tensile strength aluminum alloy, adjustable blade aerofoil |
| Motor size | 2.2 up to 110 KW |
| Drive type | Direct, belt drive |
| Material | Steel, stainless steel, special alloys |
| Surface treatment | Primer finish, hot dip galvanized, special crafting |

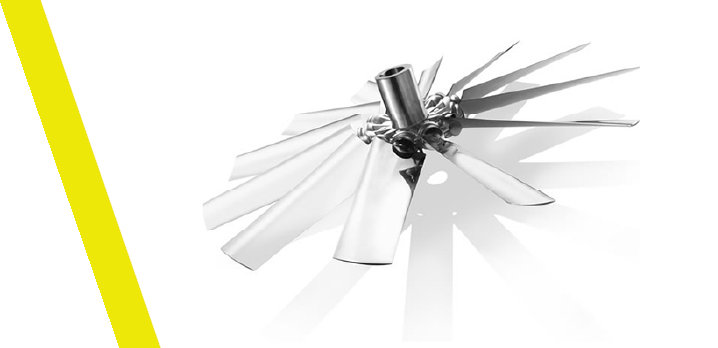

Fan Blade
Fan blade is suited to customers’ need based on various variables such as, but not limited to, fan size, pressure, and air flow requirement.
Fan Blade Materials
| PPG | Glass reinforced polypropylene. Temperature: -10°C to +90°C |
| PAG | Glass reinforced polyamide. Temperature: -40°C to +120°C |
| PAGAS | Antistatic glass reinforced polyamide for explosion proof. Temperature: -40°C to +110°C |
| PAFST | Vibration stabilized glass reinforced polyamide. Temperature: -40°C to +110°C |
| AL | Aluminium. Temperature: -60°C to +245°C. Standard alloy for the fan blades is EN AC-AI Si12 Cu1 (Fe). |
Rotation and Discharge

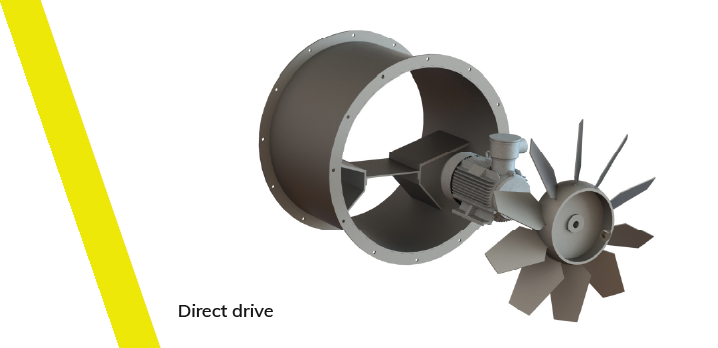

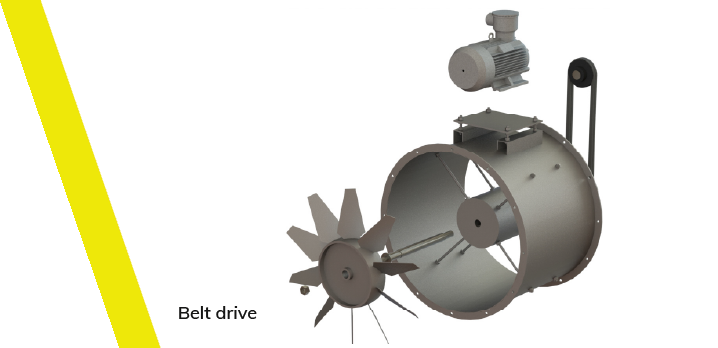

We offer 2 types of drive arrangement for our fans, i.e., direct drive, and belt drive. Each drive arrangement offers unique characteristics that can be suited to our customers’ needs, requirements, as well as constraints.
