Centrifugal Blower
Our custom-made centrifugal blowers are designed for heavy duty use for up to 24 working hours per day. All blowers are designed to meet our customers’ requirements and constraints based on, but not limited to, air flow rate (capacity), static pressure, as well as various working conditions that might impact the performance of the blowers to achieve optimum performance and efficiency.
| Inlet size | 63 up to 2500mm |
| Casing thickness | 1,5 up to 20mm |
| Casing types | Low pressure, medium pressure, high pressure, ultra-high pressure |
| Motor frame size | 63 up to 450KW |
| Drive type | Direct, coupling, or belt |
| Material | Steel, stainless steel, wear resistant steel, special alloys |
| Surface treatment | Primer finish, hot dip galvanized, special crafting |
| Outlet position | According to Eurovent |
| Special design | Flame-proof, extreme temperature, gas-tight, decontaminable, corrosion resistant, earthquake safe, shockproof, custom requirements. |

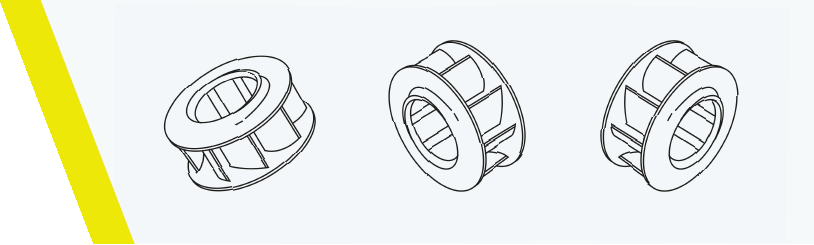

Impeller
Impeller type: backward inclined or curved, dust for material transport. The impeller can be customized based on customer’s requirement or constraint. Special coating can also be applied in order to address extreme air flow conditions that require certain material to handle, such as extreme temperature, corrosive air condition, etc.

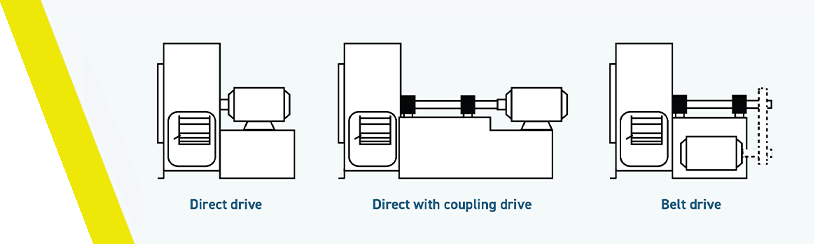

Drive Arrangements
We offer 3 types of drive arrangement for our fans, i.e., direct drive, direct with coupling drive, and belt drive. Each drive arrangement offers unique characteristics that can be suited to our customers’ needs, requirements, as well as constraints.

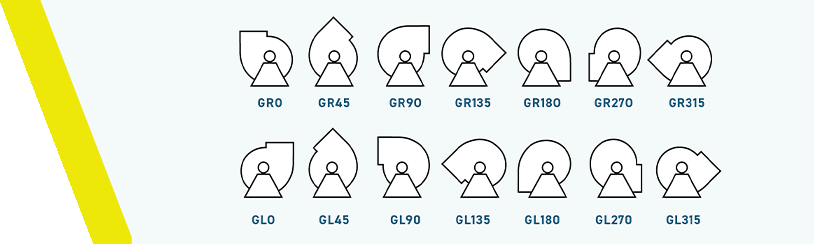

Rotation and Discharge
The rotation of our fans are based on Eurovent document 1/1 of 1972 (The European Committee of Air Equipment Manufacturer) and ISO 13349. The designations were to be taken when viewed along the axis of the fan on the drive side (opposite the inlet for a single inlet fan).
